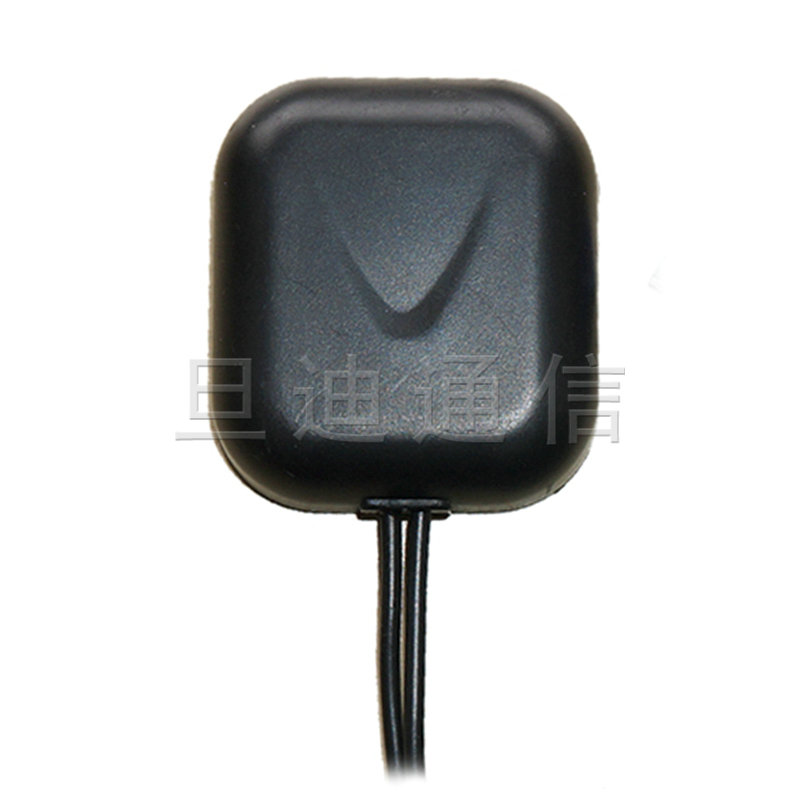

GPS |
Antenna |
Center Frequency |
1575.42±1.023 MHz |
Bandwidth |
10MHz min | ||
Peak Gain |
2dBic | ||
| Axial Ratio | 3.0dB max | ||
| V.S.W.R | 1.5dB max | ||
| Impedance | 50Ω | ||
| Polarization | RHCP | ||
| LNA |
Gain |
28±2 dB | |
Noise Figure |
1.5dB max | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| Voltage | DC 3.0~5.0V | ||
| Current | 5~15 mA | ||
| V.S.W.R | 2.0dB max | ||
| GSM | Frequency | 824~960/1710~2170MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impedance | 50Ω | ||

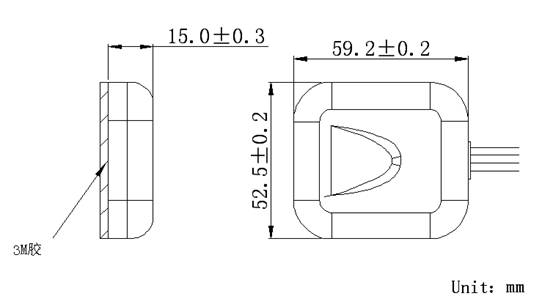

| Mechanical | Cable | RG174 | |
| Connector | SMA/FAKRA or others | ||
| Radome Material | ABS | ||
| Ingress Protection | IP67 | ||
| Mounting Method | Mounting Method:Magnet/Adhesive | ||
| Environmental | Operating Temperature | -40℃ to +85℃ | |
| Relative Humidity | Up to 95℃ | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
